Pet plastic bottles blow molding production process
Introduction to one of the blow molding processes
Plastic processing technology “blow molding” one of, compared to the simple blow molding, first an additional injection molding process, first injection molding into the bottle Compared with blow molding, there is an additional injection process, first injection molding into a bottle blank and then blow molding into hollow blow molding products, the mouth and bottom of the bottle is relatively smooth without obvious burrs phi.
Pet plastic bottles production steps
1、Procurement of raw materials
2、Fill the mold (put the mold corresponding to the bottle on the machine)
3、Put the bottle blanks on the blowing machine and heat them
4、Bottle blanks are put into the mold
5、Mold close, blowing, make the plastic fit the inner wall of the mold, forming
6、Cooling in the mold for a short time, the mold is opened and the bottles are put on the conveyor belt
7、Workers check the quality, and put the unqualified ones into the special frame
8、Boxing
9、A box is filled and sealed with tape
10、Paste the box mark, put it into the warehouse, and wait for delivery after the order is done
11、Produce the next bottle: change the mold

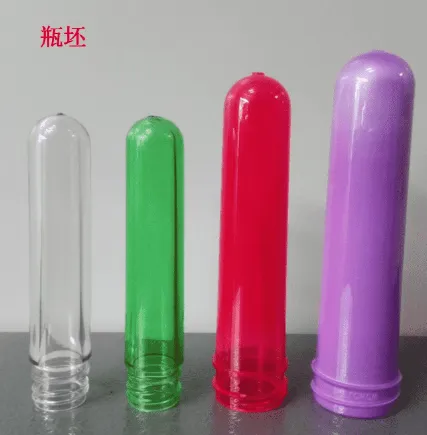

1、Raw Materials
After the customer places an order, we purchase a bottle blank of the corresponding color according to the color of the bottle. In other words, the color of the bottle is the color of the preform, and the color is made directly. After our factory receives the blanks, we do the step of “blowing/blow molding” to turn the blanks into bottles.

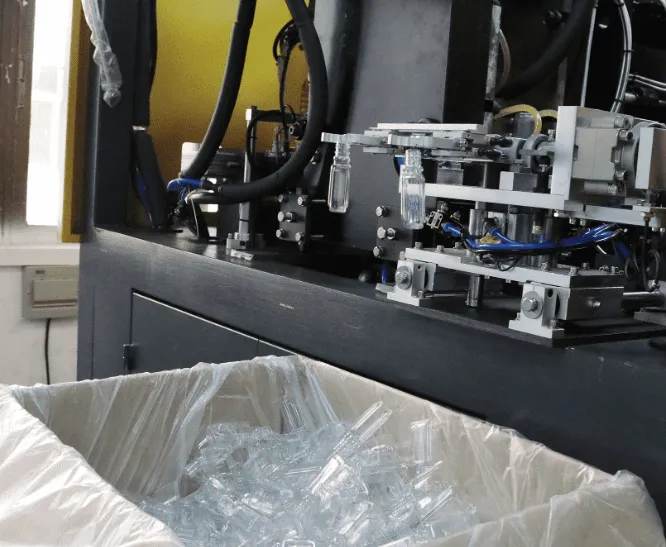

Note that some bottle blanks will be scrapped when producing bottles, i.e. some bottles are made and not qualified and are thrown away. That’s why we order some extra spares for the bottle blanks.

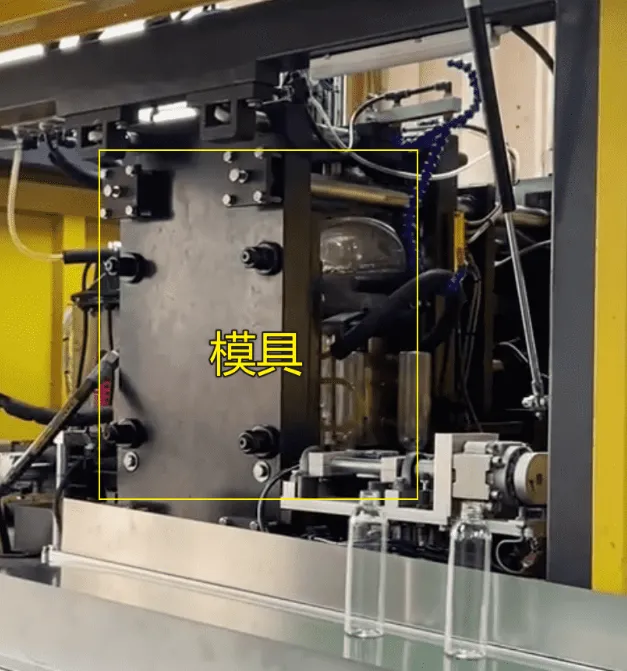

2、Fitting the mold
Regardless of the production of video bottles, what material, it is necessary to fill the mold
PS: The mold is very heavy
3、Heat the bottle blank

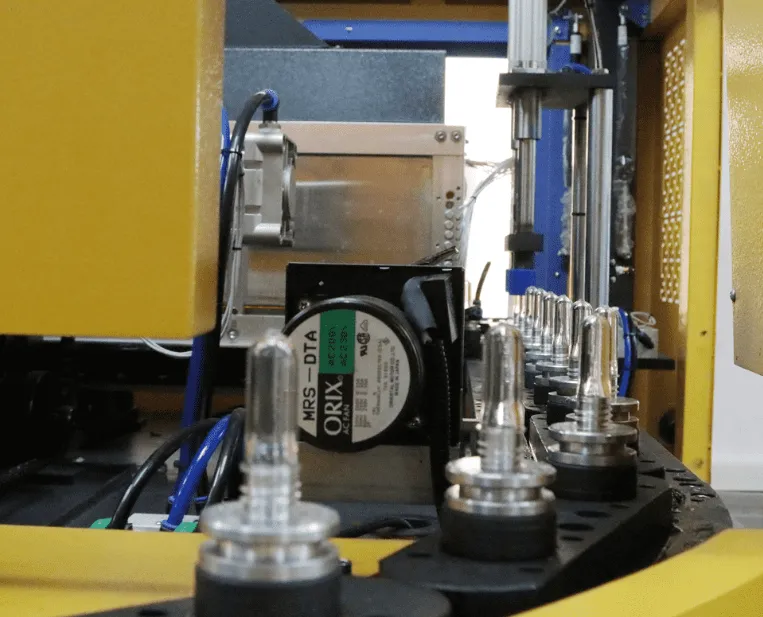

As shown in the picture, the bottle blank is put on the seat on the machine and heated to become softer in order to be blown into a bottle and to be stretched large

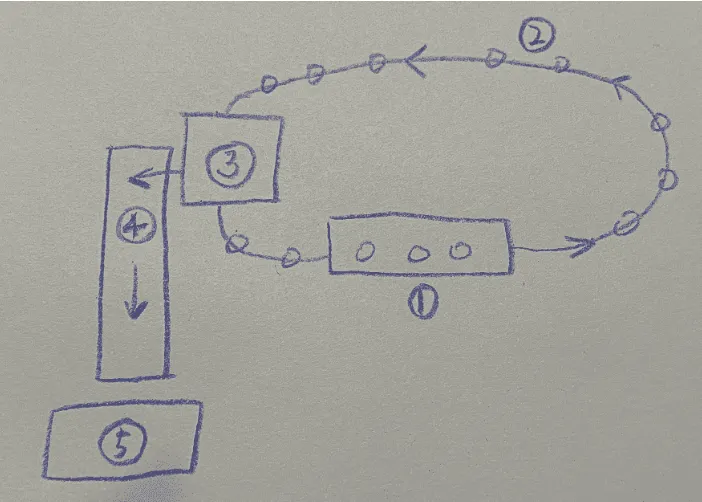

As shown
①The workers operate the position, put the bottle blank on the base
②The bottle blank is heated while rotating 360 degrees in the direction of the arrow and rotates to
③ position into the mold
③Mold position, where the bottle blank is turned, the mold automatically opens and the blow molding operation is completed.
(iv) Conveyor: the bottle is blown.
④Conveyor belt: the bottle is blown, the robot clips the bottle and puts it on the conveyor belt
⑤ Carton: the bottles fall down from the conveyor belt
After that, most of the bottles still need to be placed neatly by workers

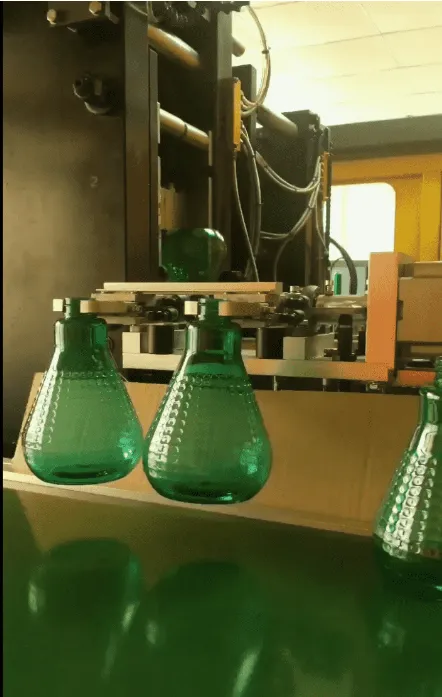

Less demanding bottles, like in the picture on the left, can be clamped directly into the box by the robot But most of our bottles are put on the conveyor belt first, like the picture on the right.
Ending
The above is the process of pet plastic bottles production, if you have the need of pet plastic bottles, you can contact us, BOTUO packaging is a professional production of pet plastic bottles factory, cheap price, fast delivery, free samples. Contact us
